Real regional embeddings, maps and a CPU classifier

The San Francisco Bay Area and surroundings span approximately 88 × 111 km inside [-122.6, 37.3, -121.6, 38.3] (west, south, east, north). The checked 2.1 MB bundle contains 5,933 real AEF 2021 cells, matching WorldCover 2021 reference labels and cell polygons. This is a regional software demonstration, not a reproduction or extension of the paper's frozen 20-system global benchmark.

Install and draw your first map

Python 3.12+, CPU. Install from the repository; no PyPI release is assumed.

git clone https://github.com/GISWLH/earth-embedding.git
cd earth-embedding
python -m pip install -e ".[demo,aef]"

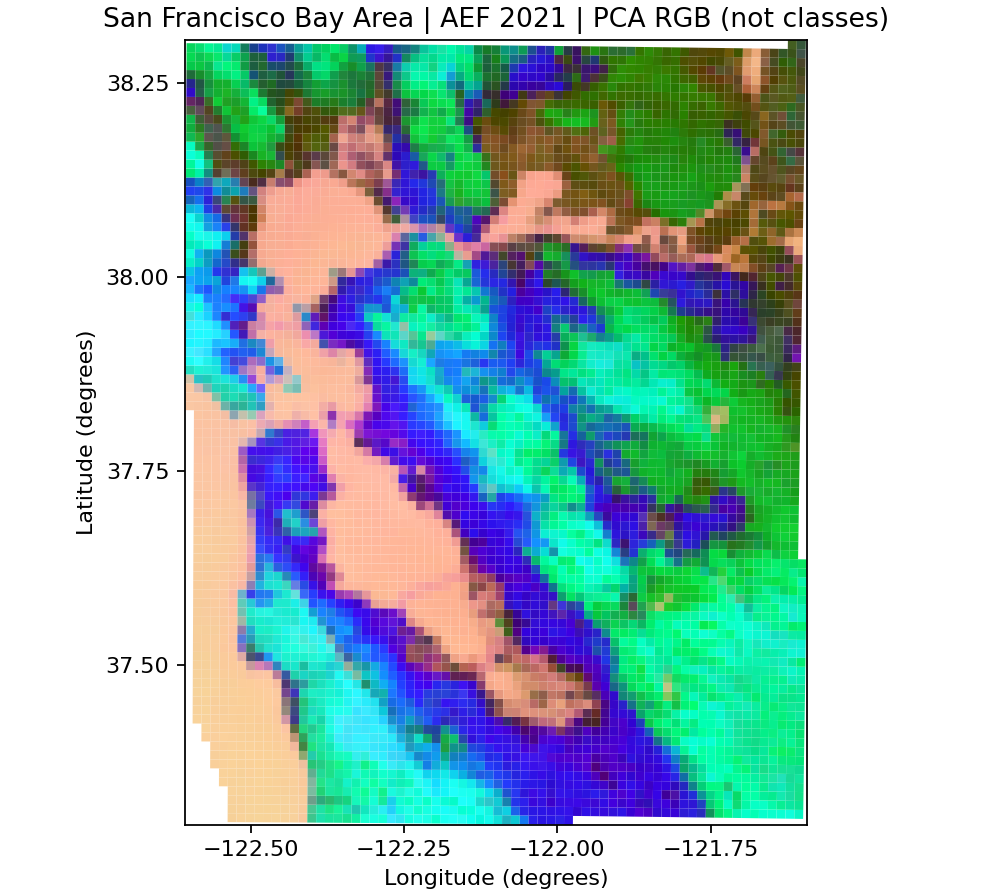

from earth_embedding.demo import load_demo, pca_colors, plot_map
data = load_demo("aef")
colors = pca_colors(data.features)
fig = plot_map(data.samples, colors, title="San Francisco Bay Area | AEF 2021 | PCA RGB")
fig.savefig("aef-pca.png", dpi=160)

load_demo("aef") and load_demo("bayarea") load the same data without network access. Each payload is verified against SHA-256 in its bundled manifest; vectors are joined to metadata by tile_id, never an assumed file row order.

These are 1,280 m official AEF overview cells, not native 10 m point samples. Google's overviews encode normalized sums of native vectors. We decode signed int8 values using sign(x) * (x / 127.5)**2, with -128 treated as missing. RGB shows PCA components stretched at their 2nd/98th percentiles. PCA colors are not land-cover classes and cannot be compared between separately fitted maps. PCA is descriptive and is not used by the classifier.

To reproduce official GCS reads (first call needs network access):

from earth_embedding.demo import fetch_aef_demo
fresh = fetch_aef_demo(cache_dir="cache/aef")
cached = fetch_aef_demo(cache_dir="cache/aef", offline=True)

Four bounded overview reads avoid downloading entire native COGs or a global index. The decoded array is pinned to SHA-256, then cached atomically. Raw overview payload totals 1 MiB; actual HTTP transfer includes headers and range overhead and was not metered. Network failures and corrupted caches raise clear errors without substitute data. Advanced callers can use sample_aef(points, tiles=urls, overview_level=6) directly. Omitting overview_level retains existing native 10 m behavior.

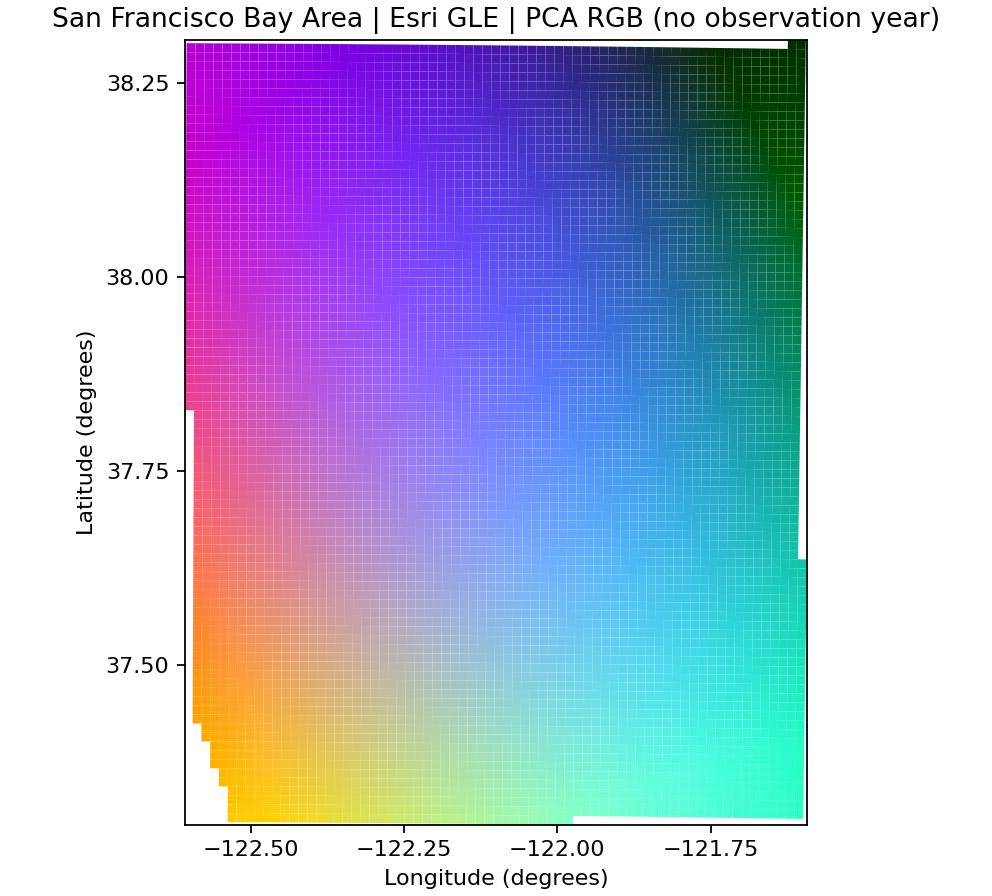

Encode 5,933 locations with Esri GLE

from earth_embedding import get_location_embeddings
from earth_embedding.demo import load_demo, pca_colors, plot_map
data = load_demo("bayarea")
points = data.samples[["center_lon", "center_lat"]].to_numpy()
gle = get_location_embeddings("esri_gle", points, device="cpu", batch_size=128)
fig = plot_map(data.samples, pca_colors(gle.data), title="San Francisco Bay Area | Esri GLE | PCA RGB")
fig.savefig("esri-gle-pca.png", dpi=160)

The official lightweight Esri package (~3.7 MB) downloads once. Inference runs directly in PyTorch without ArcGIS/ArcPy. Coordinates are [longitude, latitude]. GLE has no observation year: it encodes a geographic prior. Drawing point features on this grid is a visualization choice, not matched area support. Notebook 02 verifies batch consistency and local_files_only=True. Weights are not committed and remain subject to the Esri model terms.

Real spatial classification

from earth_embedding.demo import classify_demo, plot_classification
result = classify_demo()
print({k: result["metrics"][k] for k in ("oa", "macro_f1", "balanced_accuracy")})
fig = plot_classification(result)
fig.savefig("bayarea-classification.png", dpi=160)

The geographic split was fixed before scoring. South cells with maxlat <=37.88 train; north cells with minlat >=37.93 test. Intervening cells are unused. The minimum gap between footprints is 0.0501365° latitude (about 5.6 km). Two bare cells remain in the reference map but are outside the four-class task.

Split	Built	Vegetation	Cropland	Water	Bare	Total
Train	695	1864	9	815	0	3383
Test	249	1292	239	393	0	2173
Buffer	44	254	28	49	0	375
Excluded class	0	0	0	0	2	2

StandardScaler and LogisticRegression(C=1, tol=1e-8, max_iter=2000, random_state=42) fit training features only. There is no tuning, balancing or random split. Predictions and scores are restricted to held-out rows. Explicit float64 training and a strict convergence tolerance avoid version-dependent float32 solver paths; the final confusion matrix matches on Windows/scikit-learn 1.9 and Linux/1.8.

OA	Macro-F1	Balanced Accuracy
91.39%	87.49%	85.65%

These are this run's measurements, saved in metrics JSON and ID-bearing predictions CSV. Confusion-matrix rows are reference labels; columns are predictions, in the order built, vegetation, cropland, water. Gray map areas are unscored. Only nine training cells are cropland; cropland recall is 134/239. This single regional holdout has no uncertainty estimate or global generalization claim. WorldCover is a satellite-derived reference, not field-survey truth. Same-year products may share satellite signals, and the gap cannot remove all spatial autocorrelation. Coarse majority classes hide within-cell mixtures.

Sources, selection and independent rebuilding

The source inspection found the paper's existing global cache to be discrete samples, unsuitable for a continuous regional map. This replacement reads a bounded subset of official public products; it does not change paper data/results.

• Google / Google DeepMind AEF GCS documentation: annual 2021, four UTM 10N COGs, official overview index 6. CC-BY-4.0.
• ESA WorldCover data access: 2021 v200, N36W123, native 10 m labels from the official public AWS COG. CC-BY-4.0.
• Attribution: The AlphaEarth Foundations Satellite Embedding dataset is produced by Google and Google DeepMind. © ESA WorldCover project 2021 / Contains modified Copernicus Sentinel data (2021) processed by ESA WorldCover consortium.

Every 1,280 m cell with its center inside the bbox is considered: 5,963 candidates, 5,933 retained and 30 excluded for missing AEF values. Each retained cell has at least 95% valid reference support. WorldCover native pixel centers inside the same AEF polygon are counted, grouped, then the most frequent group is assigned (alphabetic tie break). Codes 10/20/30/90/95/100 map to vegetation, 40 to cropland, 50 to built, 80 to water, 60 to bare and 70 to snow. Zero is nodata. Selection does not use scores. Cells can extend slightly outside the center-selection bbox. Maps use transformed polygons, including south-up source rasters; neither file order nor raster row number determines north.

The installed rs_embed/data/demos/bayarea/manifest.json records exact source URLs, pixel hashes, decoded feature hash, payload sizes, selection and license. excluded.csv records omitted candidates. Large source rasters are not committed. Rebuild from pinned public URLs with no private paths or index file:

python scripts/prepare_bayarea_demo.py
python examples/real_demos.py
python scripts/run_demo_notebooks.py
python scripts/validate_real_demos.py

Preparation reads four overviews and a bounded 12,142 × 12,176 WorldCover window (148 MB uncompressed; on-wire transfer varies). Initial acquisition took about 92 seconds. Allow several minutes, network access and about 1 GB free memory. Source cache pixels are checked against pinned SHA-256 values. Normal examples and notebooks use only the 2.1 MB bundled subset.

Field	Meaning
tile_id	Stable UTM center identifier, shared with NPZ feature IDs
center_lon, center_lat	Cell center in WGS84 degrees
minlon/minlat/maxlon/maxlat	Geographic envelope for split checks
lon0/lat0 … lon3/lat3	Four transformed corners of the UTM cell
utm_easting, utm_northing	EPSG:32610 center in meters
class_name, dominant_fraction	Grouped majority and its fraction
reference_valid_fraction, aef_valid	Reference coverage and feature validity
demo_split	Fixed train/test/buffer assignment before class exclusion
features	64-dimensional float32 official overview vectors

Four executed notebooks

Notebook	Task	Expected CPU time	First download
01	Regional AEF PCA map	<1 minute	None
02	GLE batching, cache and offline inference	1–2 minutes	~3.7 MB weights
03	Spatial holdout, metrics and maps	<1 minute	None
04	ID-safe batch export and reuse	<1 minute	None

Each is executed from a fresh kernel with real outputs and at least one embedded map. Notebook 04 teaches reuse rather than ranking unequal spatial supports. See separate receipts for notebooks, actual AEF/GLE and README execution, and repository checks.
